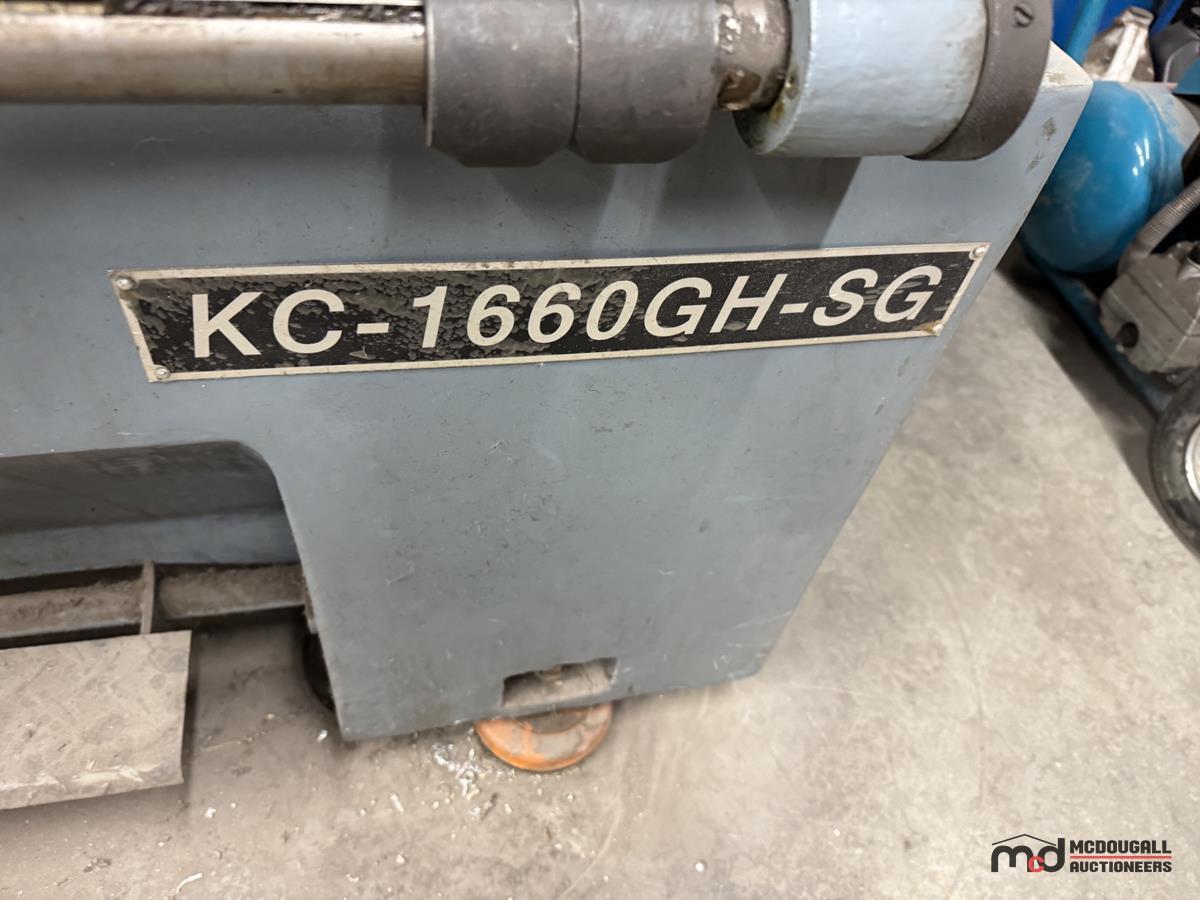

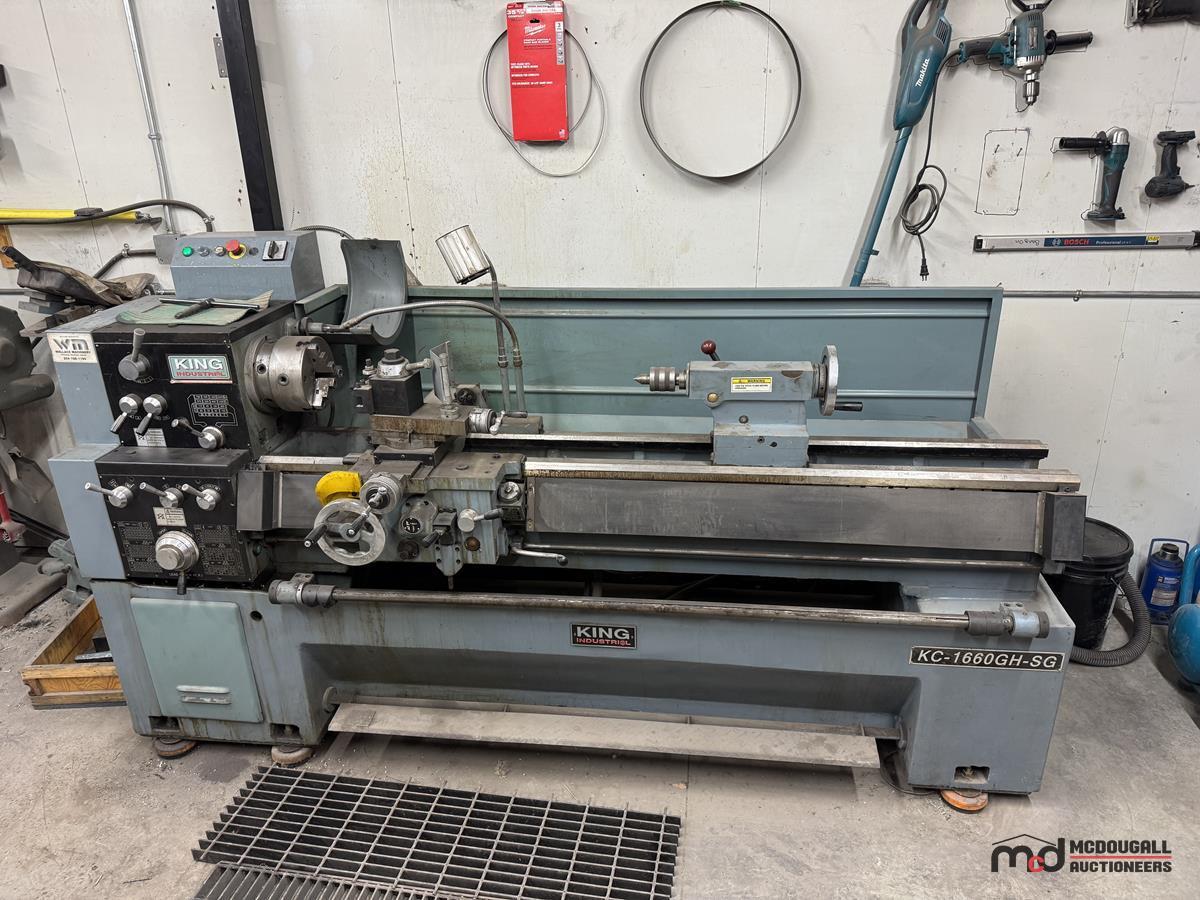

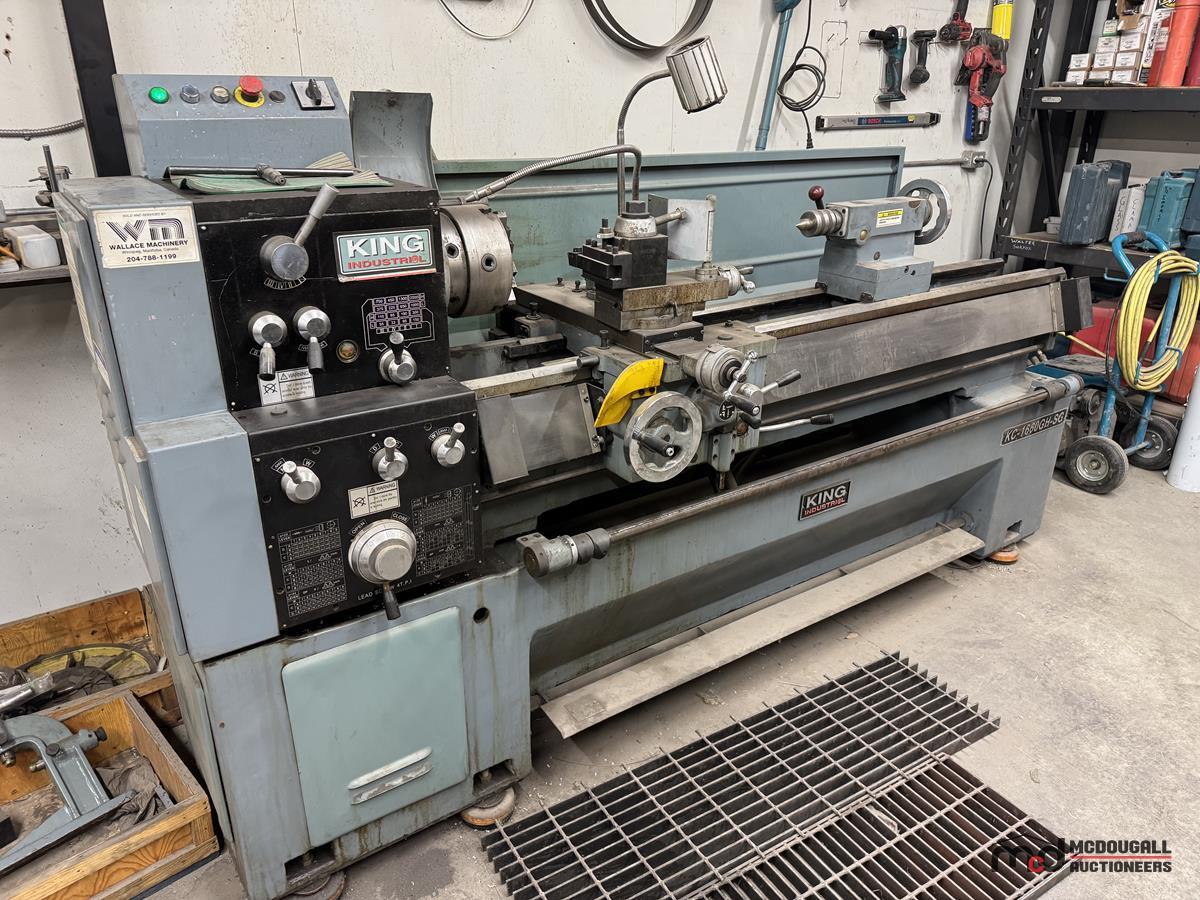

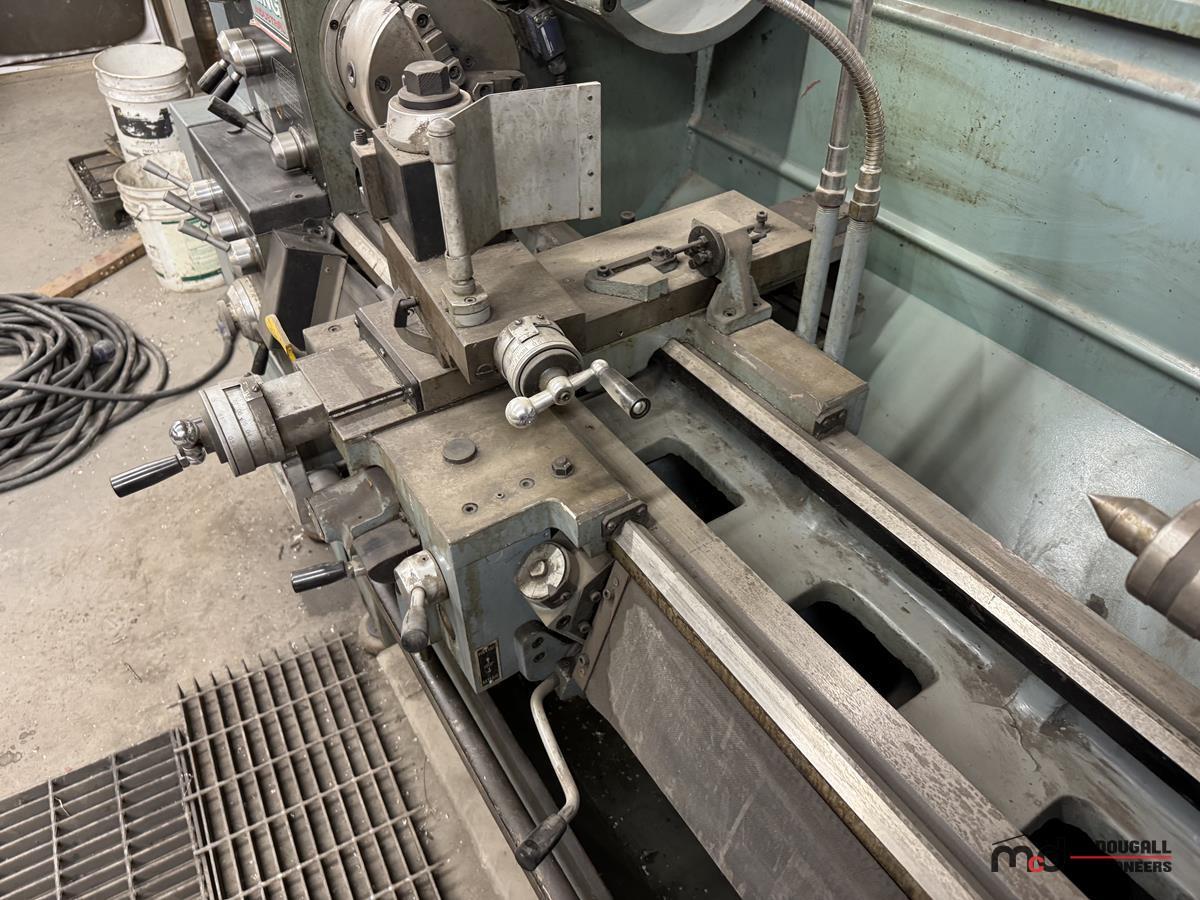

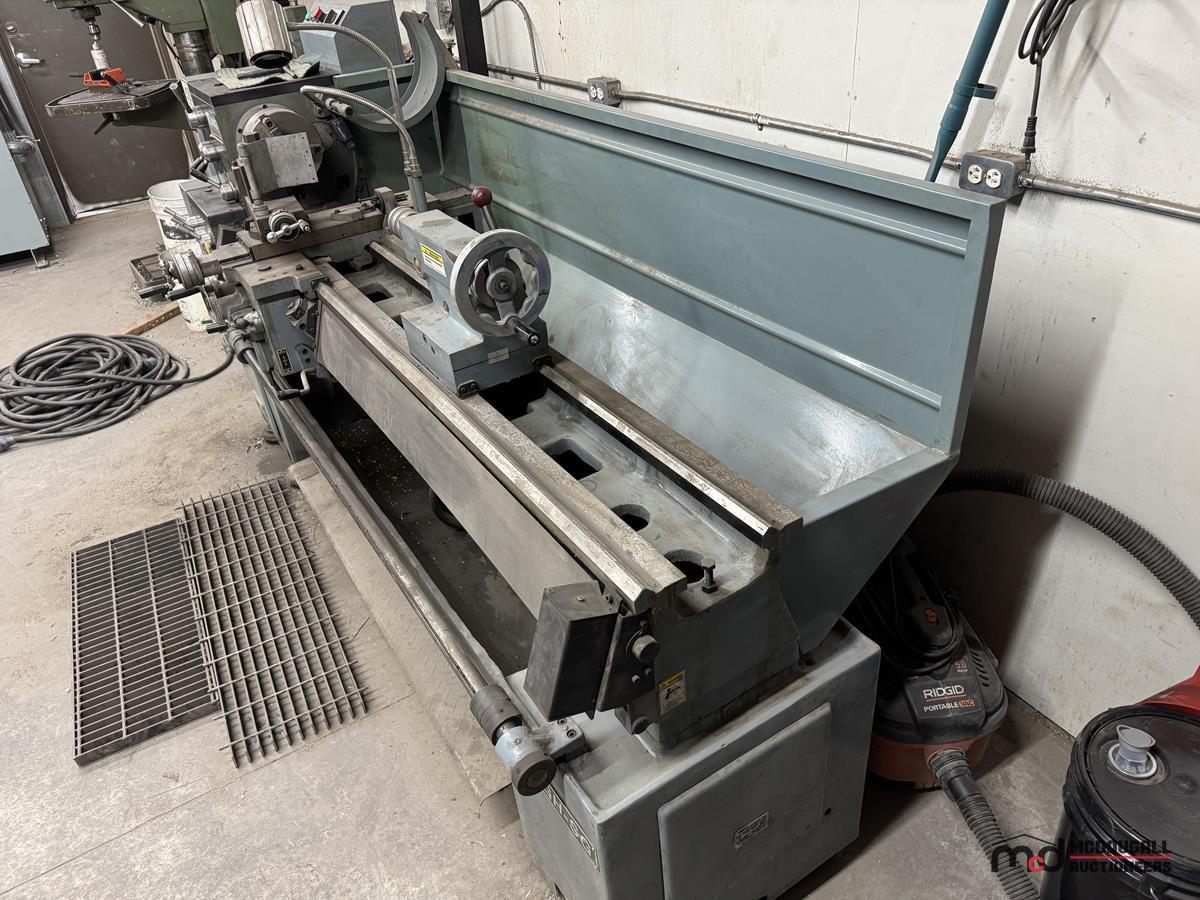

16" x 18" Gearhead Engine Lathe

16" Swing Over Bed

Swing Over Cross Slide 10 1/4"

60" Distance Between Centres

23" Swing Over Gap

Width of Bed 11"

Spindle Bore Diameter 2 1/16"

Taper in Spindle Bore MT#6

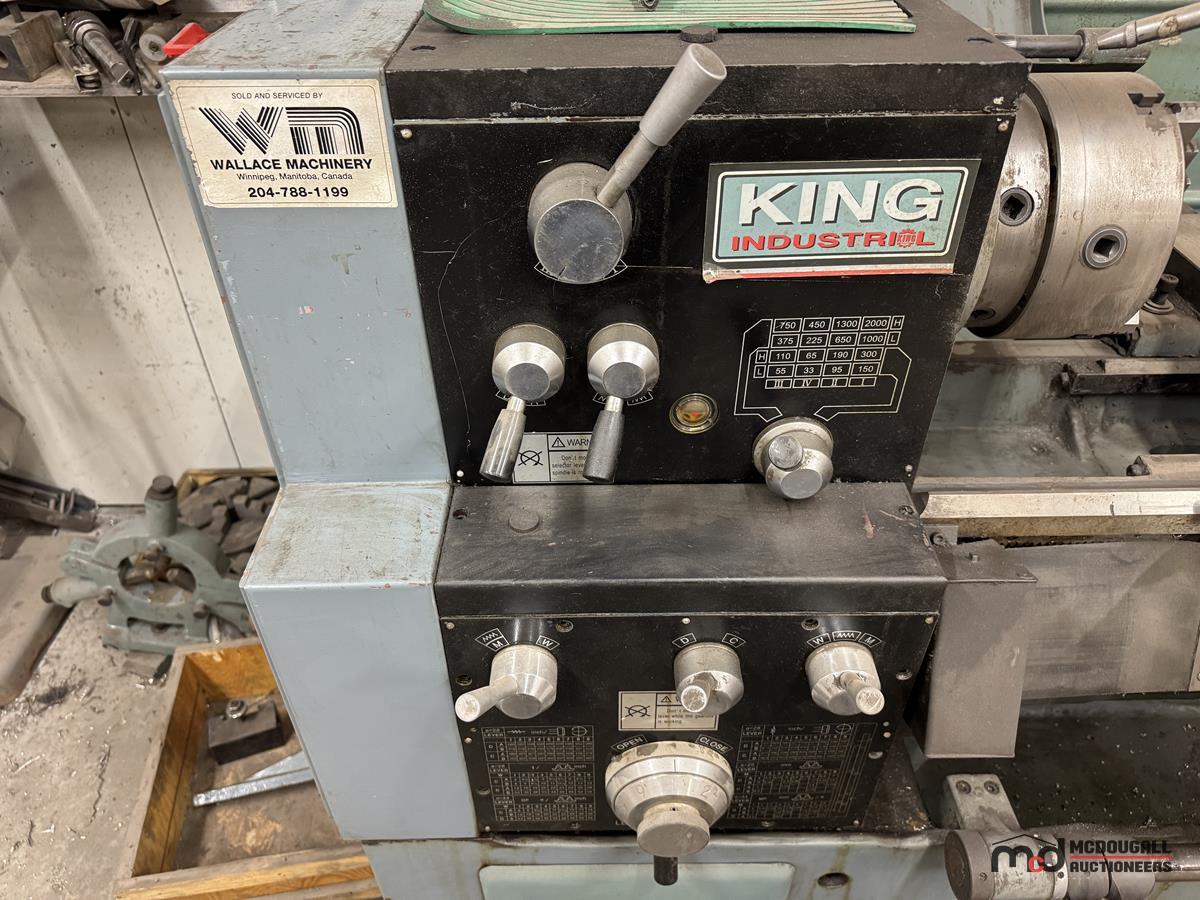

Range of Spindle Speeds (33-2000 RPM)

Inch Threads 4-56 TPI

Metric Threads 0,457 mm

Longitudinal Feed Range (0.003"-0.045")

Transversal Feed Range (0.0026-0.0366")

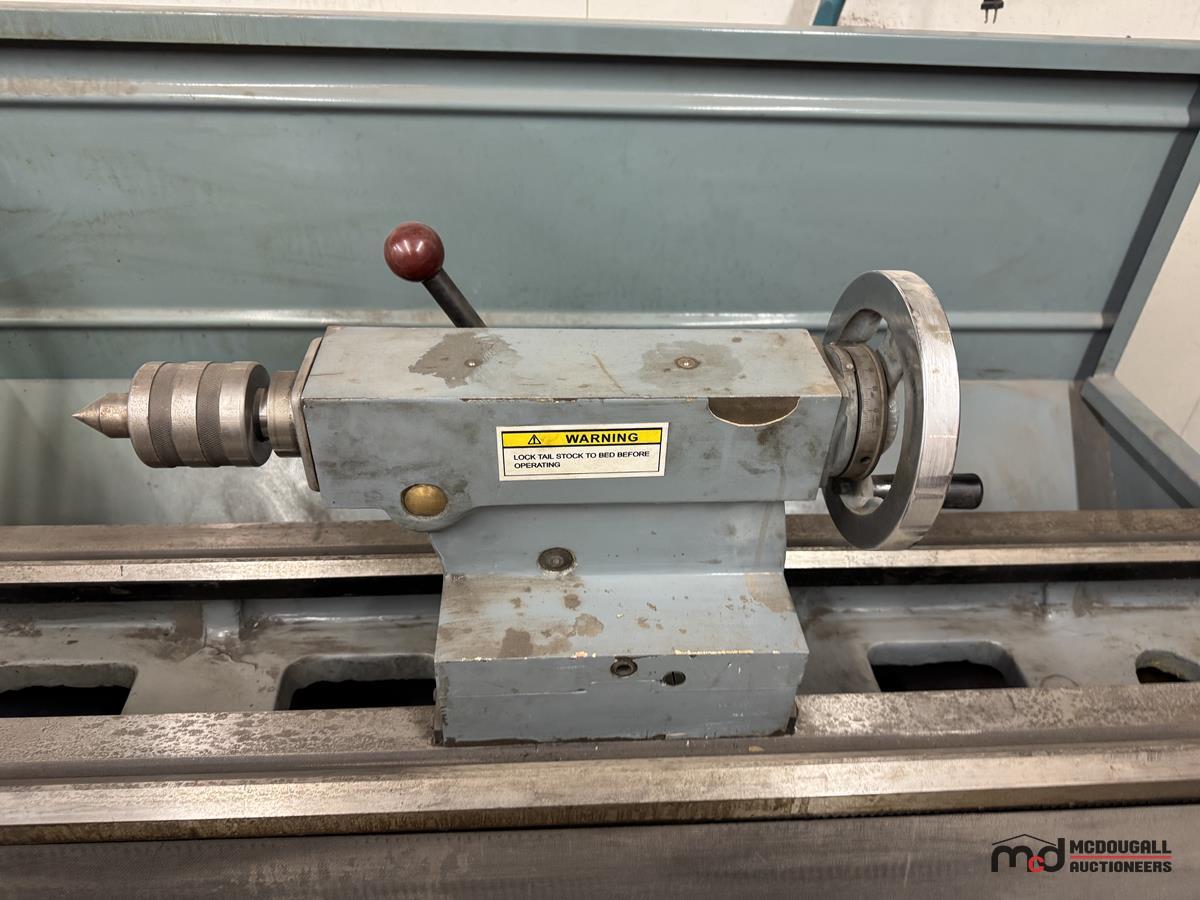

Tailstock Center Taper MT#4

Tailstock Center Sleeve Travel 4"

Tailstock Center Sleeve Diameter 2 1/16"

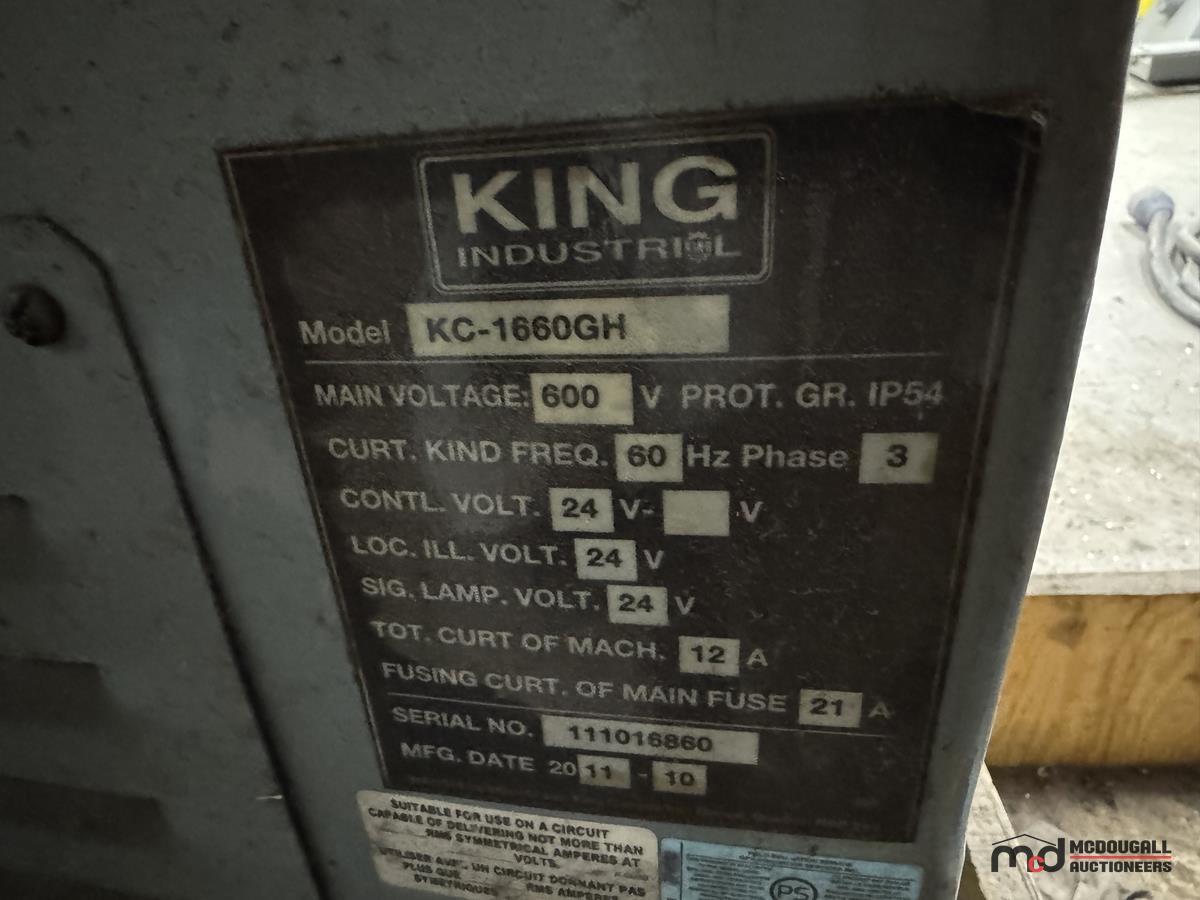

Motor 7.5 HP/600V, 3 Phase, 60 Hz

Coolant Pump Motor 1/8 HP

Dimensions (104" x 40" x 53")

Weight (4250 lbs)

Features as Per Consigner

Powerful 7.5 HP Motor

High Speed gap-bed lathe possesses a broad versatility in operation

The Machine Guideway & Gears in the Headstock are all Induction hardened to 56-60 Rockwell & Precision Ground

Precise Accuracy, Smooth Operation & Low Noise

Spindle Foot Brake Incorporated in the cabinet stand for easy operation & reliable safety

Automatic overload stop mechanism in the feeding system

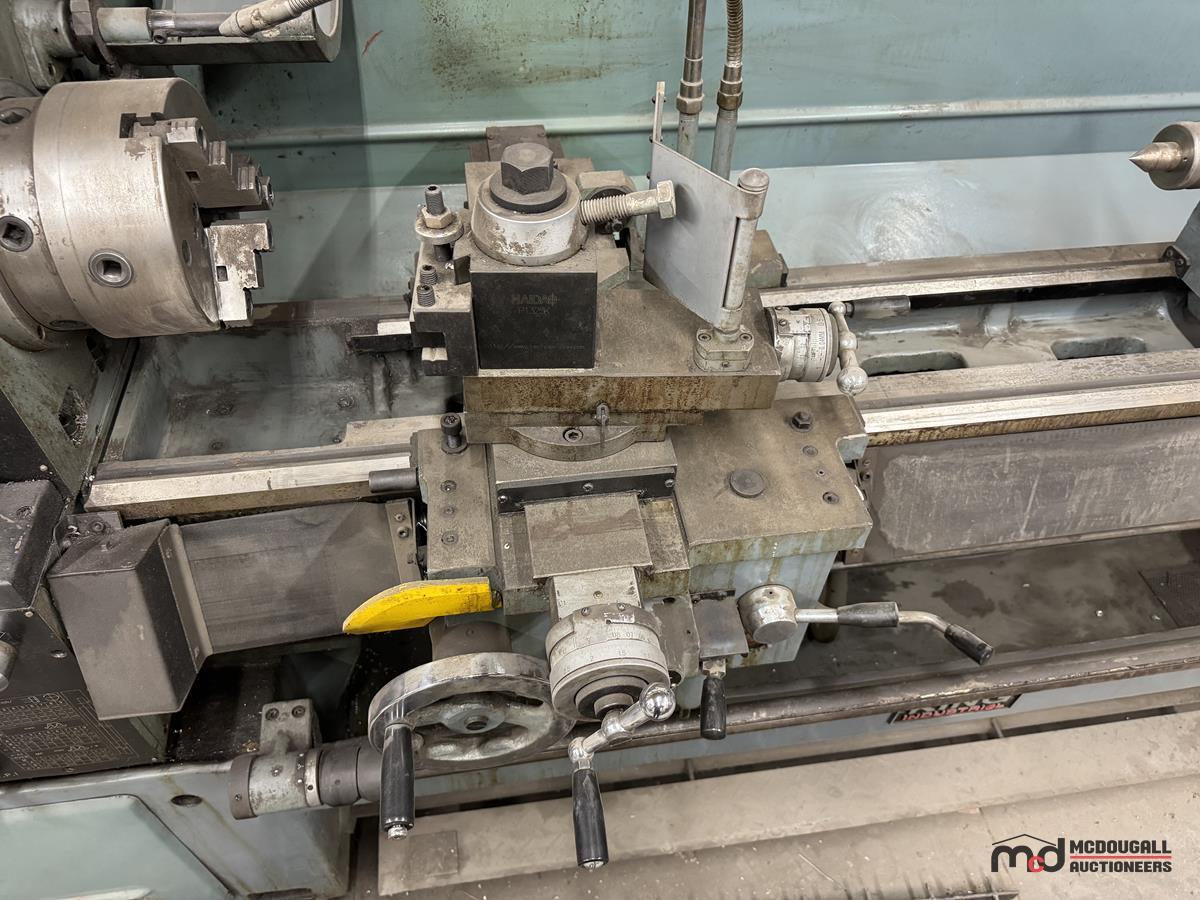

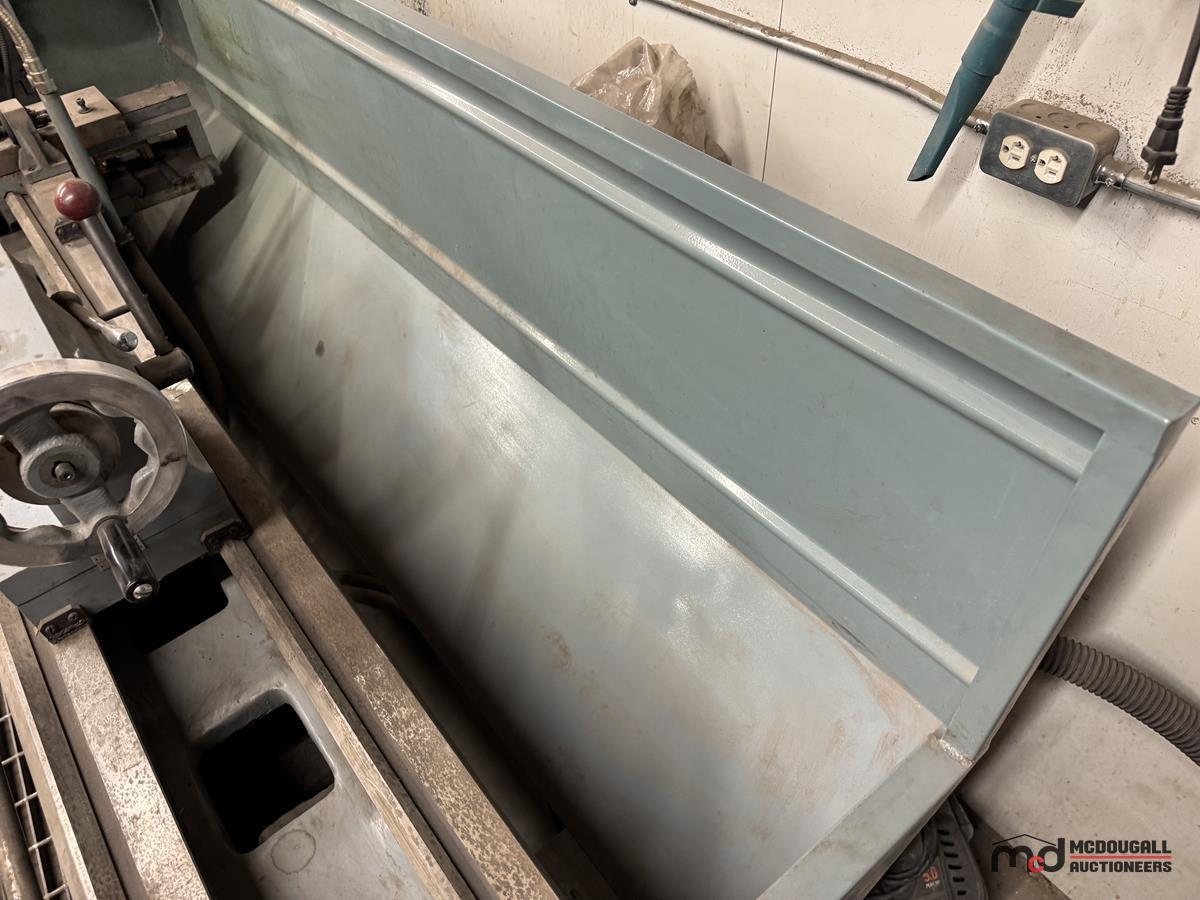

Comes complete w/ 8"-3 jaw chuck w/ inside & outside jaws, 10"-4 jaw chuck, quick adjust 6-way tool post, steady rest, follow rest, 14" (D1-6) Camlock face plate, taper attachments, 1 live center MT#4, 2 dead centers MT#4 & MT#6, thread chasing dial, metric & imperial dial, halogen light, coolant system, full length splash guard, 4 position cross slide stop, cabinet stand (full length w/ foot brake incorporated) & a tool box

For More Information Contact Mike at 204-997-8572
